zabbix 连接Grafana

1.下载安装Grafana

wget http://dl.grafana.com/oss/release/grafana-6.2.1-1.x86_64.rpm
yum localinstall grafana-6.2.1-1.x86_64.rpm
systemctl enable grafana-server
systemctl start grafana-server

2.安装 zabbix 插件

grafana-cli plugins install alexanderzobnin-zabbix-app
systemctl restart grafana-server

3.浏览器访问

http://IP:3000 IP为安装grafana主机的IP地址

Grafana默认用户名：admin，密码：admin。需重置

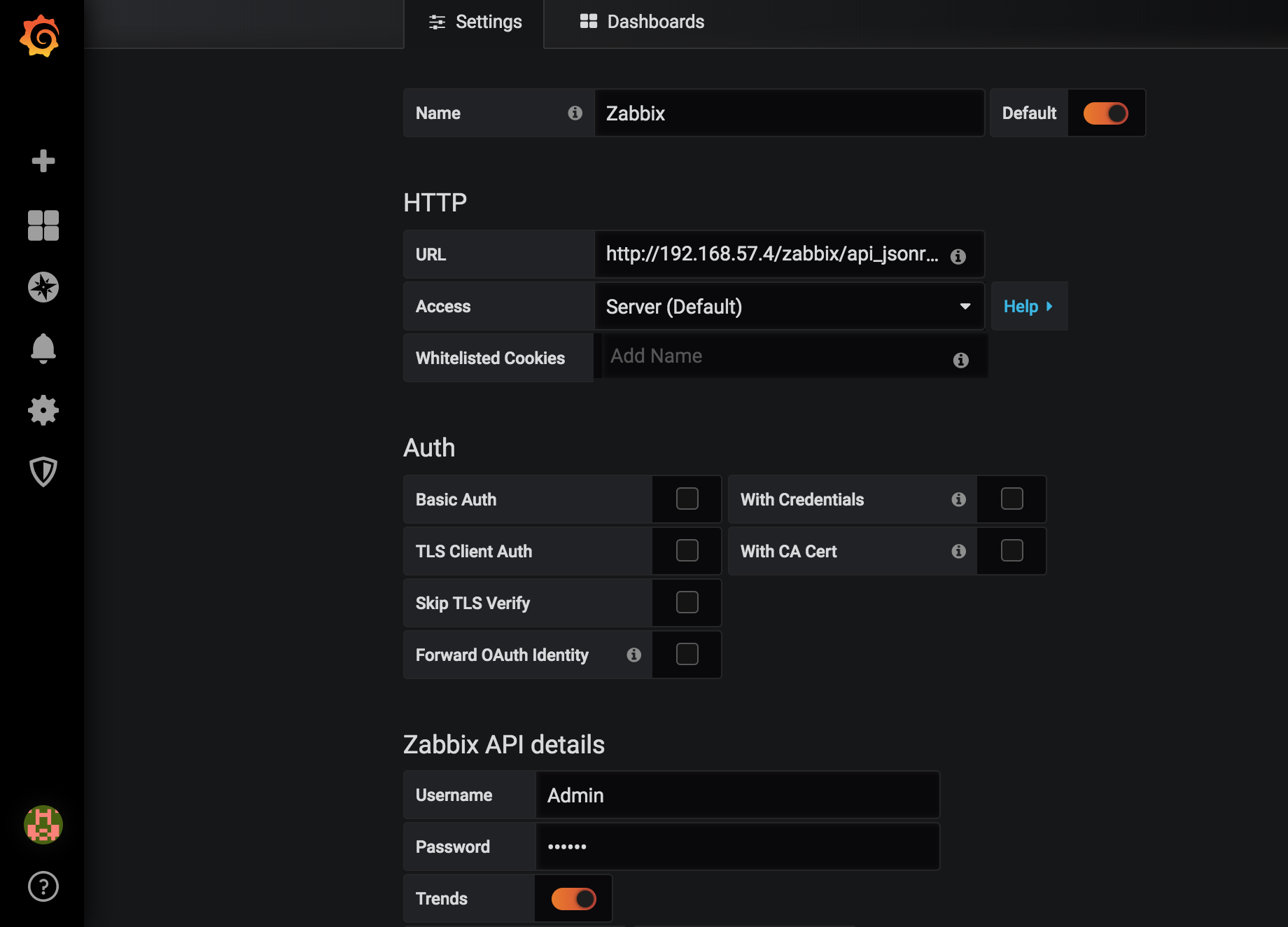

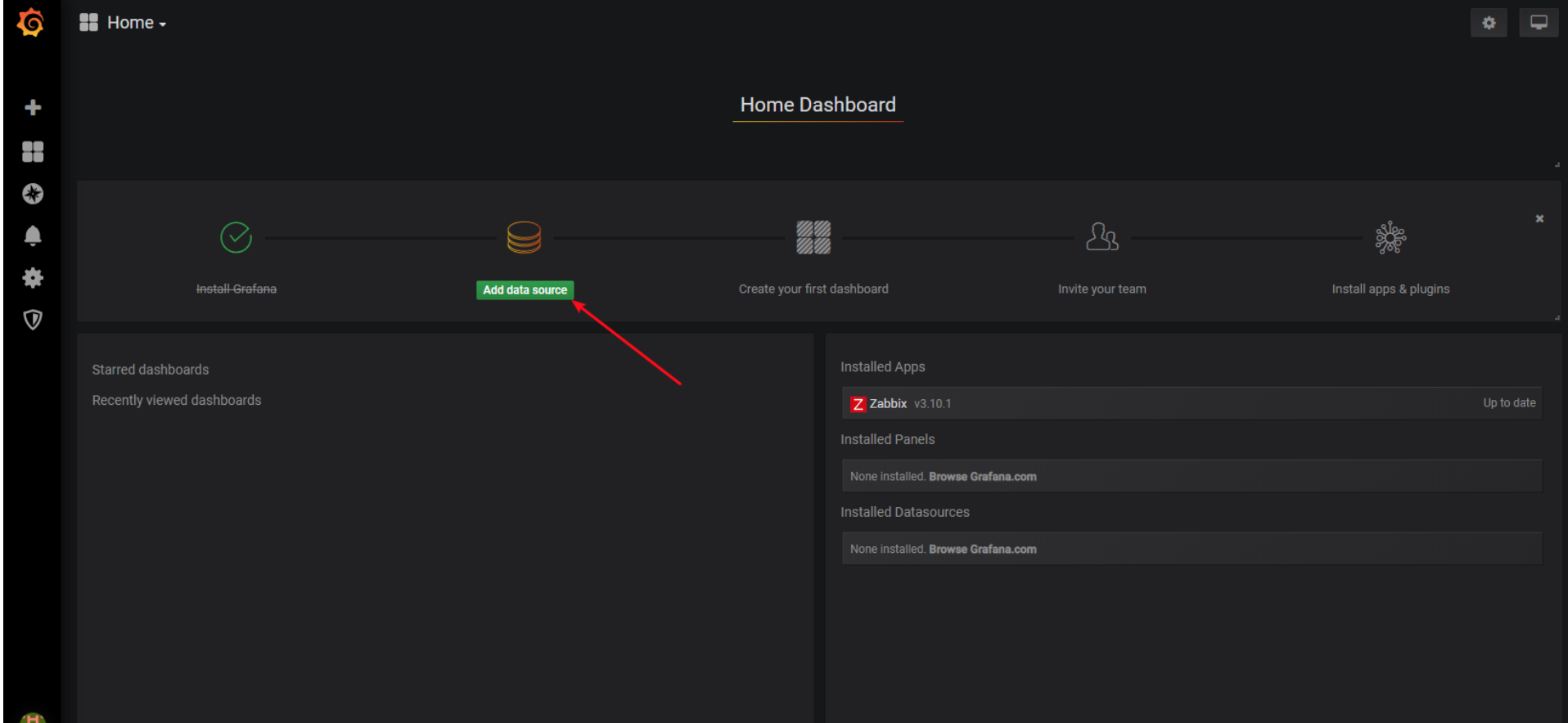

4.添加源

输入zabbix连接地址 账号和密码 ,保存
默认地址为http://zabbix-serverIP/zabbix/api_jsonrpc.php

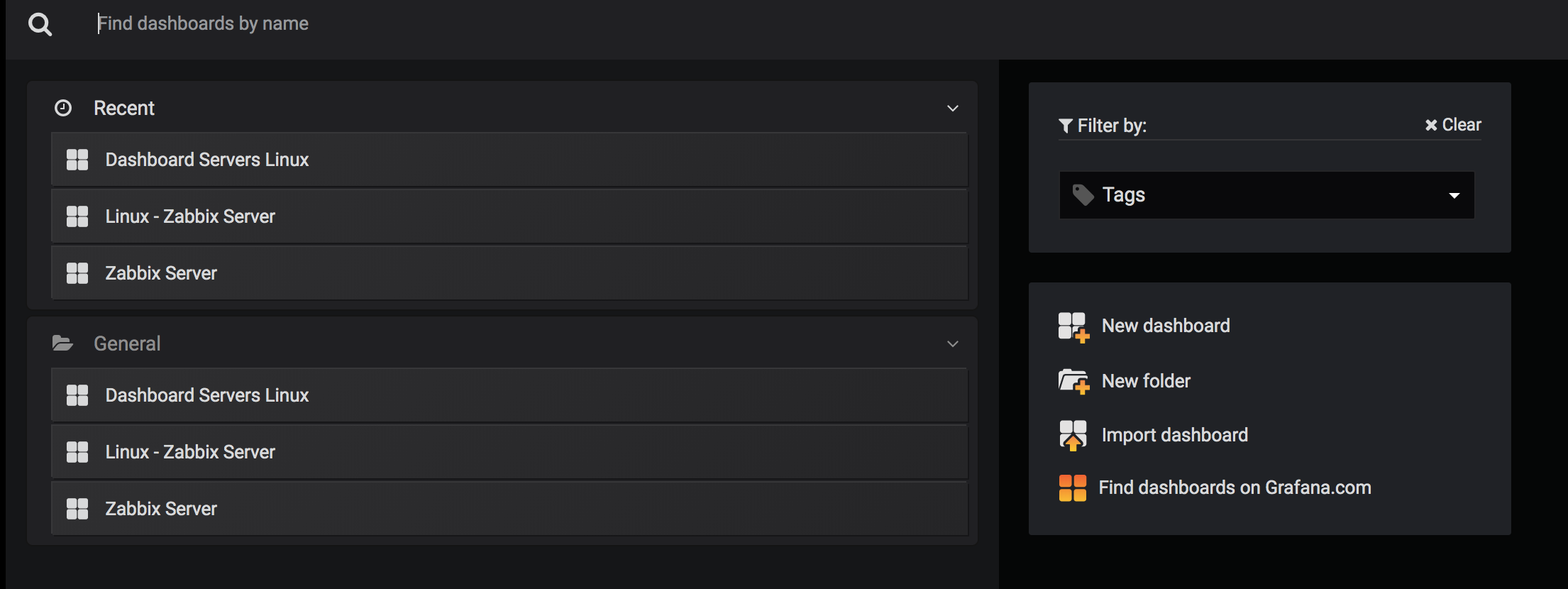

5.添加zabbix dashboard

http://grafana.com/dashboards/8677

点击import dashboard 输入8677添加
